Specification:
Model/规格型号
MY1016Z
Specification 功率/电压
250W 24V
250W 36V
350W 24V
350W 36V
Unload current空载电流/A
≤2.2
≤2.0
≤2.2
≤2.0
Unloaded speed空载转速/rpm
3850
3850
3850
3850
Rated torque额定扭矩/N·m
0.80
0.80
1.11
1.11
Rated speed额定转速/rpm
3000
3000
3000
3000
Rated current额定电流/A
≤13.4
≤9.0
≤18.7
≤12.5
Efficiency电机效率/%
≥78
≥78
≥78
≥78
Gear ratio减速比
9.78:1
Application应用范围
Light E.V./ E-bike 小型电动车 / 电动自行车

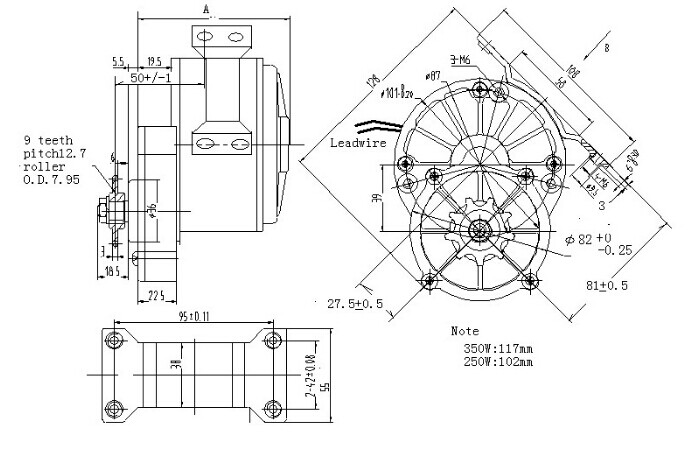

Drawing
